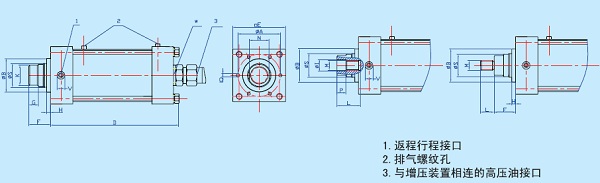

型号：

行程
ｍｍ

FKH
t

KEH
kgf

F_RH
kgf

V
Cm³

△V1
Cm³

△V2
Cm³

E

D

C

A

V

B

H

S

F

M

L

N

P

I

U

W

HZ5

50

4.8

115

90

2.0

2.2

0.5

65

176

6-M8*12

54

G3/8

40

10

25

25

M12*1.5

28

19

12

15

8

G1/2

HZ5

100

4.8

115

90

2.0

4.3

0.5

65

226

6-M8*12

54

G3/8

40

10

25

25

M12*1.5

28

19

12

15

8

G1/2

HZ5

150

4.8

115

90

2.0

6.5

0.5

65

276

6-M8*12

54

G3/8

40

10

25

25

M12*1.5

28

19

12

15

8

G1/2

HZ5

200

4.8

115

90

2.0

8.6

0.5

65

326

6-M8*12

54

G3/8

40

10

25

25

M12*1.5

28

19

12

15

8

G1/2

HZ7

50

7.6

185

130

3.1

3.4

0.6

80

194

6-M8*16

65

G3/8

52

10

35

25

M12*1.5

28

30

12

18

10

G3/4

HZ7

100

7.6

185

130

3.1

6.9

0.6

80

244

6-M8*16

65

G3/8

52

10

35

25

M12*1.5

28

30

12

18

10

G3/4

HZ7

150

7.6

185

130

3.1

10.3

0.6

80

294

6-M8*16

65

G3/8

52

10

35

25

M12*1.5

28

30

12

18

10

G3/4

HZ7

200

7.6

185

130

3.1

13.7

0.6

80

344

6-M8*16

65

G3/8

52

10

35

25

M12*1.5

28

30

12

18

10

G3/4

HZ11

50

10.8

260

210

4.4

4.9

0.6

90

194

6-M10*16

68

G3/8

52

10

35

25

M12*1.5

28

30

12

18

12

G3/4

HZ11

100

10.8

260

210

4.4

9.7

0.6

90

244

6-M10*16

68

G3/8

52

10

35

25

M12*1.5

28

30

12

18

12

G3/4

HZ11

150

10.8

260

210

4.4

14.6

0.6

90

294

6-M10*16

68

G3/8

52

10

35

25

M12*1.5

28

30

12

18

12

G3/4

HZ11

200

10.8

260

210

4.4

19.4

0.6

90

344

6-M10*16

68

G3/8

52

10

35

25

M12*1.5

28

30

12

18

12

G3/4

HZ19

50

19.2

465

350

7.9

8.6

0.7

125

215

6-M16*25

100

G1/2

75

10

50

28

M20*1.5

30

41

14

24

16

G1

HZ19

100

19.2

465

350

7.9

17.3

0.7

125

265

6-M16*25

100

G1/2

75

10

50

28

M20*1.5

30

41

14

24

16

G1

HZ19

150

19.2

465

350

7.9

25.9

0.7

125

315

6-M16*25

100

G1/2

75

10

50

28

M20*1.5

30

41

14

24

16

G1

HZ19

200

19.2

465

350

7.9

34.5

0.7

125

365

6-M16*25

100

G1/2

75

10

50

28

M20*1.5

30

41

14

24

16

G1

HZ29

50

30.0

720

580

12.3

13.5

0.7

160

298

6-M20*30

115

G3/4

80

15

55

47

M39*2

35

50

--

27

22

G1

HZ29

100

30.0

720

580

12.3

27.0

0.7

160

348

6-M20*30

115

G3/4

80

15

55

47

M39*2

35

50

--

27

22

G1

HZ29

150

30.0

720

580

12.3

40.6

0.7

160

398

6-M20*30

115

G3/4

80

15

55

47

M39*2

35

50

--

27

22

G1

HZ29

200

30.0

720

580

12.3

54.1

0.7

160

448

6-M20*30

115

G3/4

80

15

55

47

M39*2

35

50

--

27

22

G1

HZ48

50

49.2

1182

887

20.1

22

0.7

200

300

6-M20*30

150

G3/4

125

25

80

60

M64*2

60

70

--

27

30

G1

HZ48

100

49.2

1182

887

20.1

44

0.7

200

350

8-M20*30

150

G3/4

125

25

80

60

M64*2

60

70

--

27

30

G1

HZ48

150

49.2

1182

887

20.1

66

0.7

200

400

8-M20*30

150

G3/4

125

25

80

60

M64*2

60

70

--

27

30

G1

HZ48

200

49.2

1182

887

20.1

88

0.7

200

450

8-M20*30

150

G3/4

125

25

80

60

M64*2

60

70

--

27

30

G1

HZ74

50

77.0

1847

1385

131.4

35

0.7

275

366

12-M24*40

200

G3/4

150

25

100

65

M64*2

60

85

--

27

30

G1

HZ74

100

77.0

1847

1385

131.4

70

0.7

275

416

12-M24*40

200

G3/4

150

25

100

65

M64*2

60

85

--

27

30

G1

HZ74

150

77.0

1847

1385

131.4

105

0.7

275

466

12-M24*40

200

G3/4

150

25

100

65

M64*2

60

85

--

27

30

G1

HZ74

200

77.0

1847

1385

131.4

140

0.7

275

516

12-M24*40

200

G3/4

150

25

100

65

M64*2

60

85

--

27

30

G1
